รายละเอียดของสินค้า 1080P Gold Plated DisplayPort DP Male to HDMI Female Displays Adapter Cable Converter

Description:

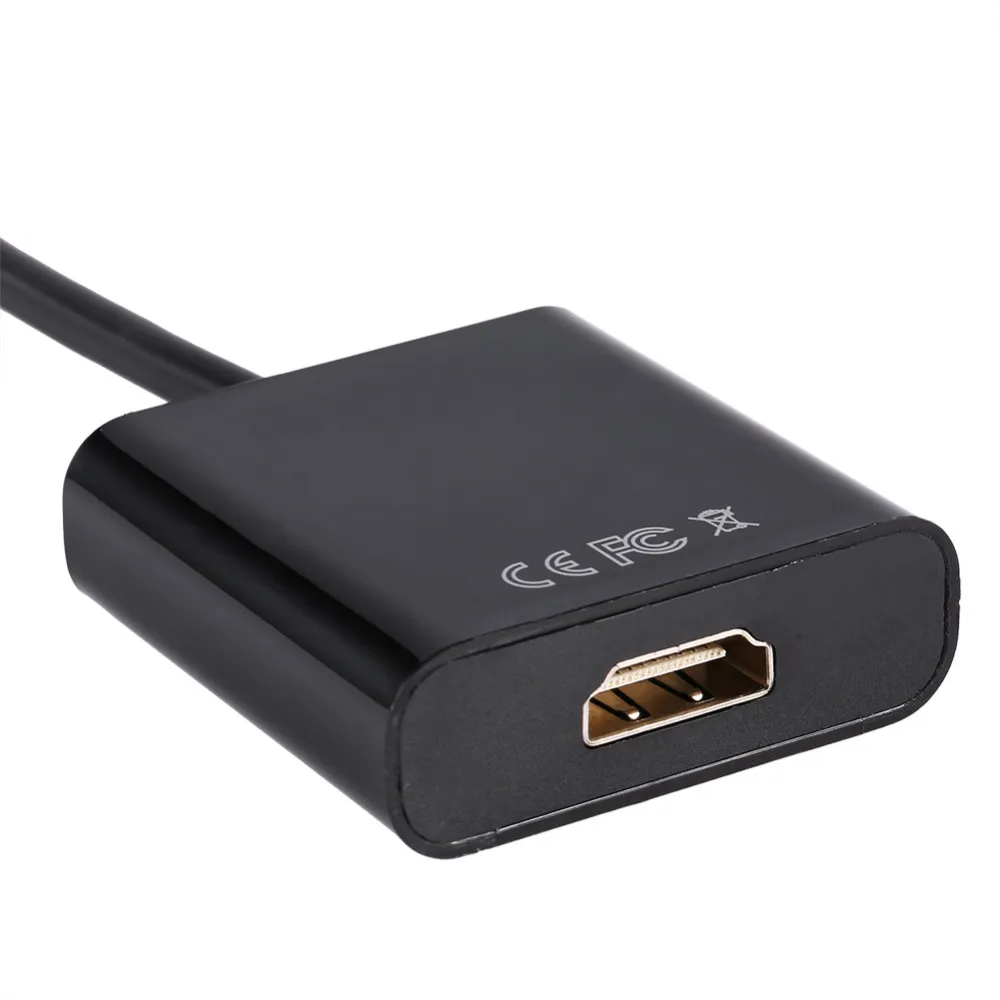

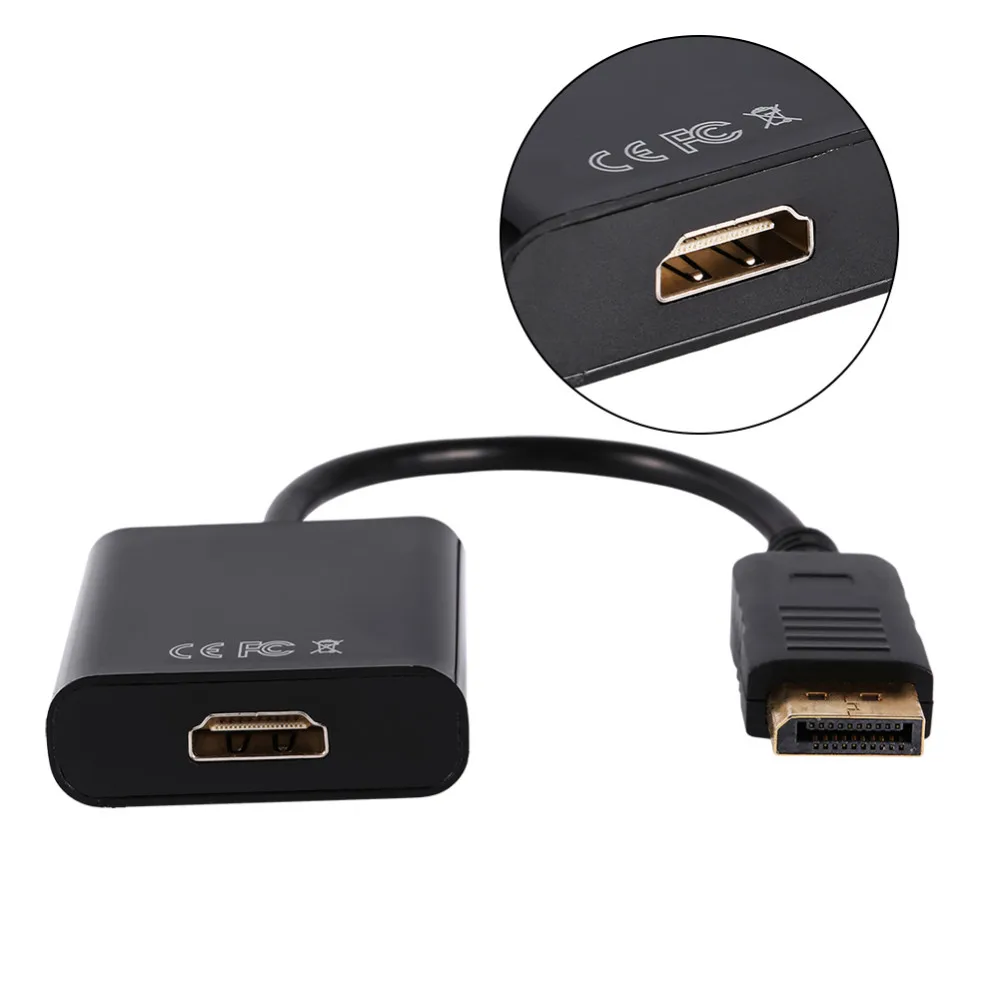

This displayport to HDMI cable is designed for connecting DisplayPort equipped computer systems to HDMI equipped monitors, providing optimal video quality up to 1080p HDTV or 1920 x 1200 PC graphics. It is a cost-effective solution to allow your DisplayPort computer to work with the HDMI display for business, home entertainment, conference rooms, and more.

Features:
1.DisplayPort v1.1 compliant
2.Support conversion from DisplayPort Male to HDMI female.
3.Support for 20pin DisplayPort interface.
4.High quality digital audio transmissions.
5.Supports resolutions up to QXGA (1920 x 1200) output.
6.Support the video Bandwidth up to 10.8Gpbs.
7.Support the 1Mbps bidirectional auxiliary channel.
8.Suport the one lane, one direction, four-line connection.
9.Support hot-swappable.
10.Built-in conversion chip, no external power supply.
11.Designed in strict accordance with the DisplayPort standard , the port was lock design, signal transmission is stable and reliable.
12.Gold-plated connectors resist corrosion, provide durability and improve the signal transmission.

Specifications:

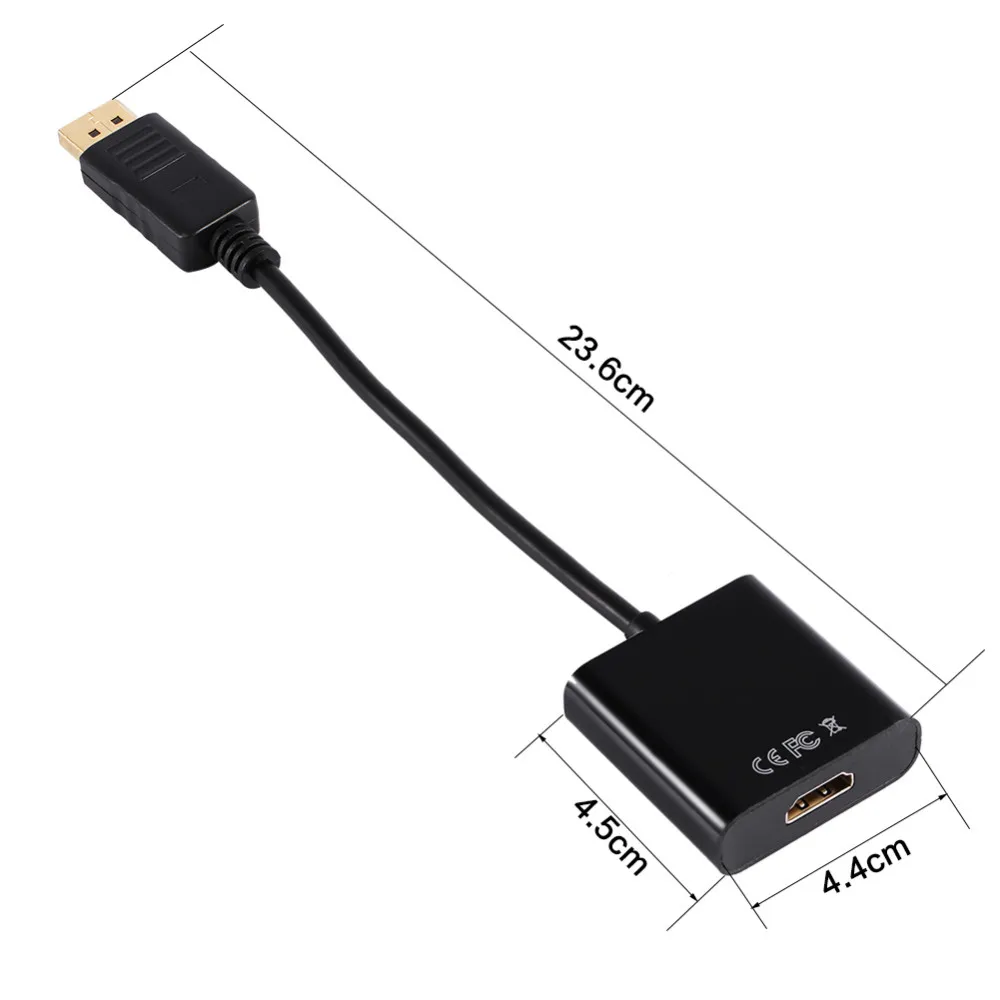

Cable Length: 20CM / 7.87inch
Video input signal: 5Volts p-p (TTL)
The maximum signal connection range: up to 1920x1200, 1080p
Video Amplifier Bandwidth: 154MHz / 144MHZ

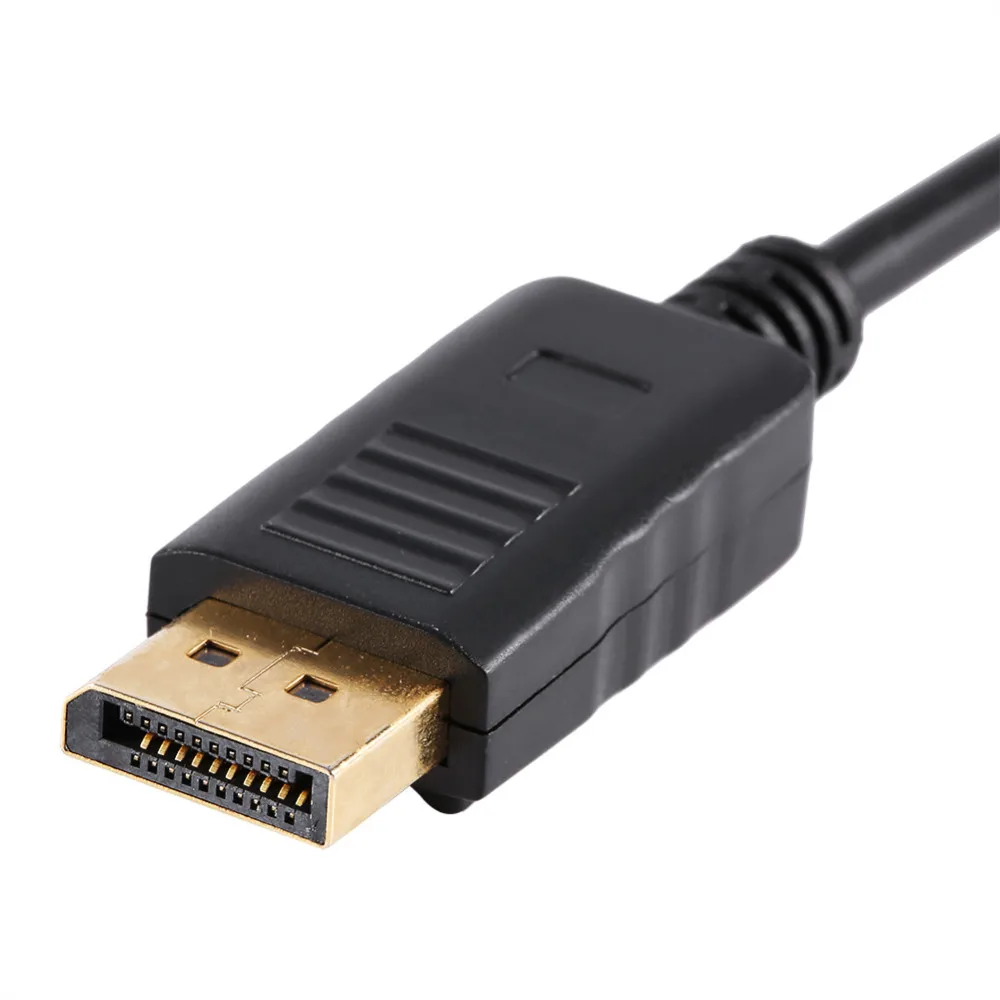

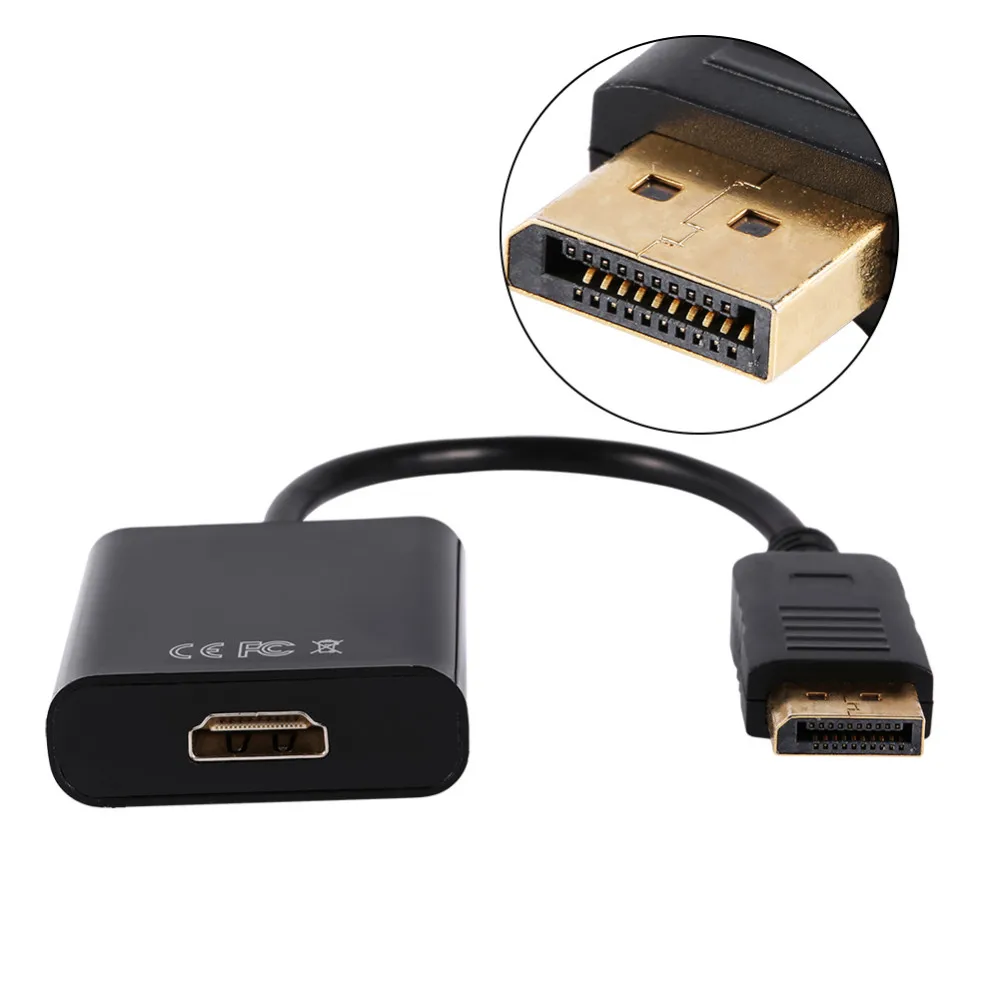

Input: DisplayPort male 20pin
RGB Analog Video Output: HDMI, DVI, VGA 15 Pin female
Environmental protection in line with ROHS directive
Support resolution: 800 x 600, 1024 x 768, 1280 x 720, 1280 x 1024, 1920 x 1080
Compatible with: Applicable to the computer, DV, flat panel, MP4 and other equipment with displayPort interface and output to the VGA monitor projector.

Package included:
1 x Displayport to HDMI Cable

Designed in strict accordance with the DisplayPort standard
